Scheduled maintenance helps keep the e-scooter operating safely and reliably, extends component life, and enables early detection of issues. This can help save time and reduce repair costs. Maintenance must be completed at the specified mileage or time intervals. Following the scheduled maintenance requirements is a condition of warranty coverage.

Bảo dưỡng định kỳ giúp duy trì trạng thái ổn định, kéo dài tuổi thọ của chi tiết; phát hiện sớm những hư hỏng trong quá trình sử dụng và giúp xe luôn hoạt động ổn định, an toàn, từ đó tiết kiệm chi phí và thời gian.
Maintenance Services

Scheduled Maintenance Items

Theon Theon
Theon S Theon S
Vento Vento
Vento S Vento S
Vento Neo Vento Neo
Vero X Vero X
Kinet Kinet
Kyo Kyo
Viper Viper
Klara A1 Klara A1
Klara A2 Klara A2
Klara A2 2020 Klara A2 2020
Klara Neo Klara Neo
Klara S Klara S
Klara S2 Klara S2
Feliz Feliz
Feliz Lite Feliz Lite
Feliz Neo Feliz Neo
Feliz S Feliz S
Feliz S Shiper Feliz S Shiper
Feliz 2025 Feliz 2025
Feliz II Feliz II
Feliz 2027 Feliz 2027
Evo Grand II Evo Grand II
Impes Impes
Ludo Ludo
Tempest Tempest
Motio Motio
Evo 200 Evo 200
Evo200 Lite Evo200 Lite
Evo Neo Evo Neo
Evo Lite Neo Evo Lite Neo
Evo Grand Evo Grand
Evo Grand Lite Evo Grand Lite
ZGoo ZGoo
Flazz Flazz
Evo Evo
VinFast Evo Lite VinFast Evo Lite
DrgnFly DrgnFly
Amio Amio
Amio S Amio S
Evo Grand Premia Evo Grand Premia
Evo Grand Limited Evo Grand Limited

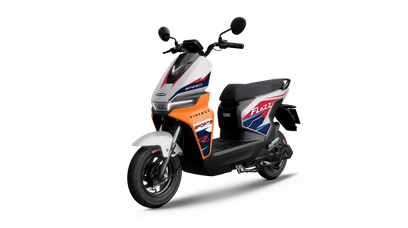

VinFast Flazz VinFast Flazz

Items recommended for periodic inspection:

  • Inspect the overall electrical system.
  • Check the battery/auxiliary battery: capacity and charging/discharging performance.
  • Check the controller, throttle, and switches.
  • Check the front and rear brakes and suspension system.
  • Check the tires and tire pressure.
  • Clean the vehicle and key components.
No. Maintenance Item Vehicle Mileage or Service Period
X 1000 km 1 5 10 15 20 25 30 35 40 45 50
Month 1 6 12 18 24 30 36 42 48 54 60
1 Brake Levers I I I I I I I I I I I
- L L L L L L L L L L
2 Lights / Horn / HMI Display I I I I I I I I I I I
3 Handlebar Grips, Throttle Grip I I I I I I I I I I I
4 Side Stand / Center Stand I I I I I I I I I I I
- L L L L L L L L L L
5 Seat Lock Mechanism Inspection - L L L L L L L L L L
6 Lithium-ion Battery Connector Ports I I I I I I I I I I I
External Appearance - I I I I I I I I I I
7 Charging Port I I I I I I I I I I I
8 Battery Connector I I I I I I I I I I I
9 Brake Fluid I I I I R I I I R I I
10 Front Brake I I I I I I I I I I I
11 Front Brake Hose I I I I I I I I I I I
12 Front Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Front Wheel Bearings I I I I I I I I I I I
Front Wheel Seal I L L L L L L L L L L
13 Front Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
14 Steering Head Bearings I I I I I I I I I I I
- - - - L - - - L - -
15 Front Suspension I I I I I I I I I I I
16 Rear Brake I I I I I I I I I I I
17 Rear Brake Hose I I I I I I I I I I I
18 Rear Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Rear Wheel Bearings I I I I I I I I I I I
19 Rear Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
20 Rear Suspension I I I I I I I I I I I
21 Motor - I I I I I I I I I I
22 Gear Oil R - R - R - R - R - R
23 Gearbox Breather I I I I I I I I I I I
24 Drive Sprockets and Drive Chain Inspect and Lubricate Every 1,000 km
25 Anti-lock Braking System (ABS) I I I I I I I I I I I
Notes: I = Inspect, L = Lubricate (with grease), R = Replace
No. Maintenance Item Vehicle Mileage or Service Period
X 1000 km 1 5 10 15 20 25 30 35 40 45 50
Month 1 6 12 18 24 30 36 42 48 54 60
1 Brake Levers I I I I I I I I I I I
- L L L L L L L L L L
2 Lights / Horn / HMI Display I I I I I I I I I I I
3 Handlebar Grips, Throttle Grip I I I I I I I I I I I
4 Side Stand / Center Stand I I I I I I I I I I I
- L L L L L L L L L L
5 Seat Lock Mechanism Inspection - L L L L L L L L L L
6 Lithium-ion Battery Connector Ports I I I I I I I I I I I
External Appearance - I I I I I I I I I I
7 Charging Port I I I I I I I I I I I
8 USB Charging Port - - - - I - - - I - -
9 Brake Fluid I I I I R I I I R I I
10 Front Brake I I I I I I I I I I I
11 Front Brake Hose I I I I I I I I I I I
12 Front Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Front Wheel Bearings I I I I I I I I I I I
Front Wheel Seal I L L L L L L L L L L
13 Front Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
14 Steering Head Bearings I I I I I I I I I I I
- - - - L - - - L - -
15 Front Suspension I I I I I I I I I I I
16 Rear Brake I I I I I I I I I I I
17 Rear Brake Hose I I I I I I I I I I I
18 Rear Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Rear Wheel Bearings I I I I I I I I I I I
19 Rear Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
20 Rear Suspension I I I I I I I I I I I
21 Motor - I I I I I I I I I I
22 Gear Oil R - R - R - R - R - R
23 Gearbox Breather I I I I I I I I I I I
24 Drive Sprockets and Drive Chain Inspect and Lubricate Every 1,000 km
25 Anti-lock Braking System (ABS) I I I I I I I I I I I
26 Lead-Acid Battery I I I I I I I I I I I
Notes: I = Inspect, L = Lubricate (with grease), R = Replace
No. Maintenance Item Vehicle Mileage or Service Period
X 1000 km 1 5 10 15 20 25 30 35 40 45 50
Month 1 6 12 18 24 30 36 42 48 54 60
1 Brake Levers I I I I I I I I I I I
- L L L L L L L L L L
2 Lights / Horn / HMI Display I I I I I I I I I I I
3 Handlebar Grips, Throttle Grip I I I I I I I I I I I
4 Side Stand / Center Stand I I I I I I I I I I I
- L L L L L L L L L L
5 Seat Lock Mechanism Inspection - L L L L L L L L L L
6 Lithium-ion Battery Connector Ports I I I I I I I I I I I
External Appearance - I I I I I I I I I I
7 Charging Port I I I I I I I I I I I
8 Battery Connector I I I I I I I I I I I
9 Brake Fluid I I I I R I I I R I I
10 Front Brake I I I I I I I I I I I
11 Front Brake Hose I I I I I I I I I I I
12 Front Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Front Wheel Bearings I I I I I I I I I I I
Front Wheel Seal I L L L L L L L L L L
13 Front Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
14 Steering Head Bearings I I I I I I I I I I I
- - - - L - - - L - -
15 Front Suspension I I I I I I I I I I I
16 Rear Brake I I I I I I I I I I I
17 Rear Brake Hose I I I I I I I I I I I
18 Rear Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Rear Wheel Bearings I I I I I I I I I I I
19 Rear Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
20 Rear Suspension I I I I I I I I I I I
21 Motor - I I I I I I I I I I
22 Gear Oil R - R - R - R - R - R
23 Gearbox Breather I I I I I I I I I I I
24 Anti-lock Braking System (ABS) I I I I I I I I I I I
Notes: I = Inspect, L = Lubricate (with grease), R = Replace
No. Maintenance Item Vehicle Mileage or Service Period
X 1000 km 1 5 10 15 20 25 30 35 40 45 50
Month 1 6 12 18 24 30 36 42 48 54 60
1 Brake Levers I I I I I I I I I I I
- L L L L L L L L L L
2 Lights / Horn / HMI Display I I I I I I I I I I I
3 Handlebar Grips, Throttle Grip I I I I I I I I I I I
4 Side Stand / Center Stand I I I I I I I I I I I
- L L L L L L L L L L
5 Seat Lock Mechanism Inspection - L L L L L L L L L L
6 Lithium-ion Battery Connector Ports I I I I I I I I I I I
External Appearance - I I I I I I I I I I
7 Charging Port I I I I I I I I I I I
8 Brake Fluid I I I I R I I I R I I
9 Front Brake I I I I I I I I I I I
10 Front Brake Hose I I I I I I I I I I I
11 Front Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Front Wheel Bearings I I I I I I I I I I I
Front Wheel Seal I L L L L L L L L L L
12 Front Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
13 Steering Head Bearings I I I I I I I I I I I
- - - - L - - - L - -
14 Front Suspension I I I I I I I I I I I
15 Rear Brake I I I I I I I I I I I
16 Rear Brake Hose I I I I I I I I I I I
17 Rear Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Rear Wheel Bearings I I I I I I I I I I I
18 Rear Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
19 Rear Suspension I I I I I I I I I I I
20 Motor - I I I I I I I I I I
21 Gear Oil R - R - R - R - R - R
22 Gearbox Breather I I I I I I I I I I I
23 Anti-lock Braking System (ABS) I I I I I I I I I I I
24 Lead-Acid Battery I I I I I I I I I I I
Notes: I = Inspect, L = Lubricate (with grease), R = Replace
No. Maintenance Item Vehicle Mileage or Service Period (Whichever Comes First)
X 1000 km 1 5 10 15 20 25 30 35 40 45 50
Month 1 6 12 18 24 30 36 42 48 54 60
1 Brake Levers I I I I I I I I I I I
- L L L L L L L L L L
2 Lights / Horn / HMI Display I I I I I I I I I I I
3 Handlebar Grips, Throttle Grip I I I I I I I I I I I
4 Side Stand / Center Stand I I I I I I I I I I I
- L L L L L L L L L L
5 Seat Lock Mechanism Inspection - L L L L L L L L L L
6 Lithium-ion Battery Connector Ports I I I I I I I I I I I
External Appearance - I I I I I I I I I I
7 Charging Port I I I I I I I I I I I
8 Brake Fluid I I I I R I I I R I I
9 Front Brake I I I I I I I I I I I
10 Front Brake Hose I I I I I I I I I I I
11 Front Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Front Wheel Bearings I I I I I I I I I I I
Front Wheel Seal I L L L L L L L L L L
12 Front Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
13 Steering Head Bearings I I I I I I I I I I I
- - - - L - - - L - -
14 Front Suspension I I I I I I I I I I I
15 Rear Brake I I I I I I I I I I I
16 Rear Brake Hose I I I I I I I I I I I
17 Rear Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Rear Wheel Bearings I I I I I I I I I I I
18 Rear Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
19 Rear Suspension I I I I I I I I I I I
20 Motor - I I I I I I I I I I
21 Motor Seal (*) I I I I I I R I I I I
Notes: I = Inspect, L = Lubricate (with grease), R = Replace
(*) Replacing the motor seal at the specified maintenance interval helps maintain motor sealing integrity and prevent potential damage or failures.
No. Maintenance Item Vehicle Mileage or Service Period (Whichever Comes First)
X 1000 km 1 5 10 15 20 25 30 35 40 45 50
Month 1 6 12 18 24 30 36 42 48 54 60
1 Brake Levers I I I I I I I I I I I
- L L L L L L L L L L
2 Lights / Horn / HMI Display I I I I I I I I I I I
3 Handlebar Grips, Throttle Grip I I I I I I I I I I I
4 Side Stand / Center Stand I I I I I I I I I I I
- L L L L L L L L L L
5 Seat Lock Mechanism Inspection - L L L L L L L L L L
6 Lithium-ion Battery Connector Ports I I I I I I I I I I I
External Appearance - I I I I I I I I I I
7 Charging Port I I I I I I I I I I I
8 Battery Connector I I I I I I I I I I I
9 Brake Fluid I I I I R I I I R I I
10 Front Brake I I I I I I I I I I I
11 Front Brake Hose I I I I I I I I I I I
12 Front Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Front Wheel Bearings I I I I I I I I I I I
Front Wheel Seal I L L L L L L L L L L
13 Front Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
14 Steering Head Bearings I I I I I I I I I I I
- - - - L - - - L - -
15 Front Suspension I I I I I I I I I I I
16 Rear Brake I I I I I I I I I I I
17 Rear Brake Cable I I I I I I I I I I I
18 Rear Brake Assembly Mounting Bolt I I I I I I I I I I I
19 Rear Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Rear Wheel Bearings I I I I I I I I I I I
20 Rear Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
21 Rear Suspension I I I I I I I I I I I
22 Motor - I I I I I I I I I I
23 Motor Seal (*) I I I I I I R I I I I
Notes: I = Inspect, L = Lubricate (with grease), R = Replace
(*) Replacing the motor seal at the specified maintenance interval helps maintain motor sealing integrity and prevent potential damage or failures.
No. Maintenance Item Mileage or time of use
X 1000 km 1 5 10 15 20 25 30 35 40 45 50
Month 1 6 12 18 24 30 36 42 48 54 60
1 Brake levers I I I I I I I I I I I
- L L L L L L L L L L
2 Lights / horn / HMI display I I I I I I I I I I I
3 Throttle grip and cover I I I I I I I I I I I
4 Side stand / center stand I I I I I I I I I I I
- L L L L L L L L L L
5 Seat lock mechanism inspection - L L L L L L L L L L
6 Lead-acid battery / Lithium-ion battery Terminals I I I I I I I I I I I
External appearance - I I I I I I I I I I
7 Charging port I I I I I I I I I I I
8 Lithium-ion battery connector I I I I I I I I I I I
9 Brake fluid I I I I R I I I R I I
10 Front brake pad I I I I I I I I I I I
11 Front brake hose I I I I I I I I I I I
12 Front wheel rim External appearance I I I I I I I I I I I
Mounting bolt I I I I I I I I I I I
Front wheel bearing I I I I I I I I I I I
Front wheel seal I L L L L L L L L L L
13 Front tire Tread depth - I I I I I I I I I I
Tire pressure I I I I I I I I I I I
14 Steering head I I I I I I I I I I I
- - - - L - - - L - -
15 Front suspension I I I I I I I I I I I
16 Rear brake pad I I I I I I I I I I I
17 Rear brake hose I I I I I I I I I I I
18 Rear wheel rim External appearance I I I I I I I I I I I
Mounting bolt I I I I I I I I I I I
Rear wheel bearing I I I I I I I I I I I
19 Rear tire Tread depth - I I I I I I I I I I
Tire pressure I I I I I I I I I I I
20 Rear suspension I I I I I I I I I I I
21 Motor - I I I I I I I I I I
22 Motor seal (*) I I I I I I R I I I I
Notes: I = Inspect, L = Lubricate (with grease), R = Replace
(*) Replacing the motor seal at the specified maintenance interval helps maintain motor sealing integrity and prevent potential damage or failures.
No. Maintenance Item Mileage or time of use
X 1000 km 1 5 10 15 20 25 30 35 40 45 50
Month 1 6 12 18 24 30 36 42 48 54 60
1 Brake levers I I I I I I I I I I I
- L L L L L L L L L L
2 Lights / horn / HMI display I I I I I I I I I I I
3 Throttle grip and cover I I I I I I I I I I I
4 Side stand / center stand I I I I I I I I I I I
- L L L L L L L L L L
5 Seat lock mechanism inspection - L L L L L L L L L L
6 Lead-acid battery / Lithium-ion battery Terminals I I I I I I I I I I I
External appearance - I I I I I I I I I I
7 Charging port I I I I I I I I I I I
8 Brake fluid I I I I R I I I R I I
9 Front brake pad I I I I I I I I I I I
10 Front brake hose I I I I I I I I I I I
11 Front wheel rim External appearance I I I I I I I I I I I
Mounting bolt I I I I I I I I I I I
Front wheel bearing I I I I I I I I I I I
Front wheel seal I L L L L L L L L L L
12 Front tire Tread depth - I I I I I I I I I I
Tire pressure I I I I I I I I I I I
13 Steering head I I I I I I I I I I I
- - - - L - - - L - -
14 Front suspension I I I I I I I I I I I
15 Rear brake pad I I I I I I I I I I I
16 Rear brake hose I I I I I I I I I I I
17 Rear wheel rim External appearance I I I I I I I I I I I
Mounting bolt I I I I I I I I I I I
Rear wheel bearing I I I I I I I I I I I
18 Rear tire Tread depth - I I I I I I I I I I
Tire pressure I I I I I I I I I I I
19 Rear suspension I I I I I I I I I I I
20 Motor - I I I I I I I I I I
21 Motor seal (*) I I I I I I R I I I I
Notes: I = Inspect, L = Lubricate (with grease), R = Replace
(*) Replacing the motor seal at the specified maintenance interval helps maintain motor sealing integrity and prevent potential damage or failures.
No. Maintenance Item Vehicle Mileage or Service Period
X 1000 km 1 5 10 15 20 25 30 35 40 45 50
Month 1 6 12 18 24 30 36 42 48 54 60
1 Brake Levers I I I I I I I I I I I
- L L L L L L L L L L
2 Lights / Horn / HMI Display I I I I I I I I I I I
3 Handlebar Grips, Throttle Grip I I I I I I I I I I I
4 Side Stand / Center Stand I I I I I I I I I I I
- L L L L L L L L L L
5 Seat Lock Mechanism Inspection - L L L L L L L L L L
6 Lead-acid Battery Terminals I I I I I I I I I I I
External Appearance - I I I I I I I I I I
7 Charging Port I I I I I I I I I I I
8 Brake Fluid I I I I R I I I R I I
9 Front Brake I I I I I I I I I I I
10 Front Brake Hose I I I I I I I I I I I
11 Front Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Front Wheel Bearings I I I I I I I I I I I
Front Wheel Seal I L L L L L L L L L L
12 Front Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
13 Steering Head Bearings I I I I I I I I I I I
- - - - L - - - L - -
14 Front Suspension I I I I I I I I I I I
15 Rear Brake I I I I I I I I I I I
16 Rear Brake Cable I I I I I I I I I I I
17 Rear Brake Assembly Mounting Bolt I I I I I I I I I I I
18 Rear Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Rear Wheel Bearings I I I I I I I I I I I
19 Rear Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
20 Rear Suspension I I I I I I I I I I I
21 Motor - I I I I I I I I I I
22 Motor Seal (*) I I I I I I R I I I I
Notes: I = Inspect, L = Lubricate (with grease), R = Replace
(*) Replacing the motor seal at the specified maintenance interval helps maintain motor sealing integrity and prevent potential damage or failures.
No. Maintenance Item Vehicle Mileage or Service Period (Whichever Comes First)
X 1000 km 1 5 10 15 20 25 30 35 40 45 50
Month 1 6 12 18 24 30 36 42 48 54 60
1 Brake Levers I I I I I I I I I I I
- L L L L L L L L L L
2 Lights / Horn / HMI Display I I I I I I I I I I I
3 Handlebar Grips, Throttle Grip I I I I I I I I I I I
4 Side Stand / Center Stand I I I I I I I I I I I
- L L L L L L L L L L
5 Seat Lock Mechanism Inspection - L L L L L L L L L L
6 Lithium-ion Battery Connector Ports I I I I I I I I I I I
External Appearance - I I I I I I I I I I
7 Charging Port I I I I I I I I I I I
8 Brake Fluid I I I I R I I I R I I
9 Front Brake I I I I I I I I I I I
10 Front Brake Hose I I I I I I I I I I I
11 Front Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Front Wheel Bearings I I I I I I I I I I I
Front Wheel Seal I L L L L L L L L L L
12 Front Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
13 Steering Head Bearings I I I I I I I I I I I
- - - - L - - - L - -
14 Front Suspension I I I I I I I I I I I
15 Rear Brake I I I I I I I I I I I
16 Rear Brake Cable I I I I I I I I I I I
17 Rear Brake Assembly Mounting Bolt I I I I I I I I I I I
18 Rear Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Rear Wheel Bearings I I I I I I I I I I I
19 Rear Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
20 Rear Suspension I I I I I I I I I I I
21 Motor - I I I I I I I I I I
22 Motor Seal (*) I I I I I I R I I I I
Notes: I = Inspect, L = Lubricate (with grease), R = Replace
(*) Replacing the motor seal at the specified maintenance interval helps maintain motor sealing integrity and prevent potential damage or failures.
No. Maintenance Item Vehicle Mileage or Service Period
X 1000 km 1 5 10 15 20 25 30 35 40 45 50
Month 1 6 12 18 24 30 36 42 48 54 60
1 Brake Levers I I I I I I I I I I I
- L L L L L L L L L L
2 Lights / Horn / HMI Display I I I I I I I I I I I
3 Handlebar Grips, Throttle Grip I I I I I I I I I I I
4 Side Stand / Center Stand I I I I I I I I I I I
- L L L L L L L L L L
5 Seat Lock Mechanism Inspection - L L L L L L L L L L
6 Lithium-ion Battery Connector Ports I I I I I I I I I I I
External Appearance - I I I I I I I I I I
7 Charging Port I I I I I I I I I I I
8 Lithium-ion Battery Connector I I I I I I I I I I I
9 Brake Fluid I I I I R I I I R I I
10 Front Brake I I I I I I I I I I I
11 Front Brake Hose I I I I I I I I I I I
12 Front Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Front Wheel Bearings I I I I I I I I I I I
Front Wheel Seal I L L L L L L L L L L
13 Front Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
14 Steering Head Bearings I I I I I I I I I I I
- - - - L - - - L - -
15 Front Suspension I I I I I I I I I I I
16 Rear Brake I I I I I I I I I I I
17 Rear Brake Hose I I I I I I I I I I I
18 Rear Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Rear Wheel Bearings I I I I I I I I I I I
19 Rear Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
20 Rear Suspension I I I I I I I I I I I
21 Motor - I I I I I I I I I I
22 Motor Seal (*) I I I I I I R I I I I
Notes: I = Inspect, L = Lubricate (with grease), R = Replace
(*) Replacing the motor seal at the specified maintenance interval helps maintain motor sealing integrity and prevent potential damage or failures.
No. Maintenance Item Vehicle Mileage or Service Period
X 1000 km 1 5 10 15 20 25 30 35 40 45 50
Month 1 6 12 18 24 30 36 42 48 54 60
1 Brake Levers I I I I I I I I I I I
- L L L L L L L L L L
2 Lights / Horn / HMI Display I I I I I I I I I I I
3 Handlebar Grips, Throttle Grip I I I I I I I I I I I
4 Side Stand / Center Stand I I I I I I I I I I I
- L L L L L L L L L L
5 Seat Lock Mechanism Inspection - L L L L L L L L L L
6 Lithium-ion Battery Connector Ports I I I I I I I I I I I
External Appearance - I I I I I I I I I I
7 Charging Port I I I I I I I I I I I
8 Brake Fluid I I I I R I I I R I I
9 Front Brake I I I I I I I I I I I
10 Front Brake Hose I I I I I I I I I I I
11 Front Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Front Wheel Bearings I I I I I I I I I I I
Front Wheel Seal I L L L L L L L L L L
12 Front Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
13 Steering Head Bearings I I I I I I I I I I I
- - - - L - - - L - -
14 Front Suspension I I I I I I I I I I I
15 Rear Brake I I I I I I I I I I I
16 Rear Brake Hose I I I I I I I I I I I
17 Rear Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Rear Wheel Bearings I I I I I I I I I I I
18 Rear Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
19 Rear Suspension I I I I I I I I I I I
20 Motor - I I I I I I I I I I
21 Motor Seal (*) I I I I I I R I I I I
Notes: I = Inspect, L = Lubricate (with grease), R = Replace
(*) Replacing the motor seal at the specified maintenance interval helps maintain motor sealing integrity and prevent potential damage or failures.
No. Maintenance Item Vehicle Mileage or Service Period
X 1000 km 1 5 10 15 20 25 30 35 40 45 50
Month 1 6 12 18 24 30 36 42 48 54 60
1 Brake Levers I I I I I I I I I I I
- L L L L L L L L L L
2 Lights / Horn / HMI Display I I I I I I I I I I I
3 Handlebar Grips, Throttle Grip I I I I I I I I I I I
4 Side Stand / Center Stand I I I I I I I I I I I
- L L L L L L L L L L
5 Seat Lock Mechanism Inspection - L L L L L L L L L L
6 Lead-acid Battery Terminals I I I I I I I I I I I
External Appearance - I I I I I I I I I I
7 Charging Port I I I I I I I I I I I
8 Brake Fluid I I I I R I I I R I I
9 Front Brake I I I I I I I I I I I
10 Front Brake Hose I I I I I I I I I I I
11 Front Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Front Wheel Bearings I I I I I I I I I I I
Front Wheel Seal I L L L L L L L L L L
12 Front Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
13 Steering Head Bearings I I I I I I I I I I I
- - - - L - - - L - -
14 Front Suspension I I I I I I I I I I I
15 Rear Brake I I I I I I I I I I I
16 Rear Brake Cable I I I I I I I I I I I
17 Rear Brake Assembly Mounting Bolt I I I I I I I I I I I
18 Rear Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Rear Wheel Bearings I I I I I I I I I I I
19 Rear Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
20 Rear Suspension I I I I I I I I I I I
21 Motor - I I I I I I I I I I
22 Motor Seal (*) I I I I I I R I I I I
Notes: I = Inspect, L = Lubricate (with grease), R = Replace
(*) Replacing the motor seal at the specified maintenance interval helps maintain motor sealing integrity and prevent potential damage or failures.
No. Maintenance Item Vehicle Mileage or Service Period (Whichever Comes First)
X 1000 km 1 5 10 15 20 25 30 35 40 45 50
Month 1 6 12 18 24 30 36 42 48 54 60
1 Brake Levers I I I I I I I I I I I
- L L L L L L L L L L
2 Lights / Horn / HMI Display I I I I I I I I I I I
3 Handlebar Grips, Throttle Grip I I I I I I I I I I I
4 Side Stand / Center Stand I I I I I I I I I I I
- L L L L L L L L L L
5 Seat Lock Mechanism Inspection - L L L L L L L L L L
6 Lithium-ion Battery Connector Ports I I I I I I I I I I I
External Appearance - I I I I I I I I I I
7 Charging Port I I I I I I I I I I I
8 Battery Connector I I I I I I I I I I I
9 Brake Fluid I I I I R I I I R I I
10 Front Brake I I I I I I I I I I I
11 Front Brake Hose I I I I I I I I I I I
12 Front Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Front Wheel Bearings I I I I I I I I I I I
Front Wheel Seal I L L L L L L L L L L
13 Front Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
14 Steering Head Bearings I I I I I I I I I I I
- - - - L - - - L - -
15 Front Suspension I I I I I I I I I I I
16 Rear Brake I I I I I I I I I I I
17 Rear Brake Cable I I I I I I I I I I I
18 Rear Brake Assembly Mounting Bolt I I I I I I I I I I I
19 Rear Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Rear Wheel Bearings I I I I I I I I I I I
20 Rear Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
21 Rear Suspension I I I I I I I I I I I
22 Motor - I I I I I I I I I I
23 Motor Seal (*) I I I I I I R I I I I
Notes: I = Inspect, L = Lubricate (with grease), R = Replace
(*) Replacing the motor seal at the specified maintenance interval helps maintain motor sealing integrity and prevent potential damage or failures.
No. Maintenance Item Vehicle Mileage or Service Period
X 1000 km 1 5 10 15 20 25 30 35 40 45 50
Month 1 6 12 18 24 30 36 42 48 54 60
1 Brake Levers I I I I I I I I I I I
- L L L L L L L L L L
2 Lights / Horn / HMI Display I I I I I I I I I I I
3 Handlebar Grips, Throttle Grip I I I I I I I I I I I
4 Side Stand / Center Stand I I I I I I I I I I I
- L L L L L L L L L L
5 Seat Lock Mechanism Inspection - L L L L L L L L L L
6 Lithium-ion Battery Connector Ports I I I I I I I I I I I
External Appearance - I I I I I I I I I I
7 Charging Port I I I I I I I I I I I
8 Battery Connector I I I I I I I I I I I
9 Brake Fluid I I I I R I I I R I I
10 Front Brake I I I I I I I I I I I
11 Front Brake Hose I I I I I I I I I I I
12 Front Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Front Wheel Bearings I I I I I I I I I I I
Front Wheel Seal I L L L L L L L L L L
13 Front Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
14 Steering Head Bearings I I I I I I I I I I I
- - - - L - - - L - -
15 Front Suspension I I I I I I I I I I I
16 Rear Brake I I I I I I I I I I I
17 Rear Brake Cable I I I I I I I I I I I
18 Rear Brake Assembly Mounting Bolt I I I I I I I I I I I
19 Rear Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Rear Wheel Bearings I I I I I I I I I I I
20 Rear Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
21 Rear Suspension I I I I I I I I I I I
22 Motor - I I I I I I I I I I
23 Motor Seal (*) I I I I I I R I I I I
Notes: I = Inspect, L = Lubricate (with grease), R = Replace
(*) Replacing the motor seal at the specified maintenance interval helps maintain motor sealing integrity and prevent potential damage or failures.
No. Maintenance Item Vehicle Mileage or Service Period
X 1000 km 1 5 10 15 20 25 30 35 40 45 50
Month 1 6 12 18 24 30 36 42 48 54 60
1 Brake Levers I I I I I I I I I I I
- L L L L L L L L L L
2 Lights / Horn / HMI Display I I I I I I I I I I I
3 Handlebar Grips, Throttle Grip I I I I I I I I I I I
4 Side Stand / Center Stand I I I I I I I I I I I
- L L L L L L L L L L
5 Seat Lock Mechanism Inspection - L L L L L L L L L L
6 Lithium-ion Battery Connector Ports I I I I I I I I I I I
External Appearance - I I I I I I I I I I
7 Charging Port I I I I I I I I I I I
8 Brake Fluid I I I I R I I I R I I
9 Front Brake I I I I I I I I I I I
10 Front Brake Hose I I I I I I I I I I I
11 Front Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Front Wheel Bearings I I I I I I I I I I I
Front Wheel Seal I L L L L L L L L L L
12 Front Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
13 Steering Head Bearings I I I I I I I I I I I
- - - - L - - - L - -
14 Front Suspension I I I I I I I I I I I
15 Rear Brake I I I I I I I I I I I
16 Rear Brake Cable I I I I I I I I I I I
17 Rear Brake Assembly Mounting Bolt I I I I I I I I I I I
18 Rear Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Rear Wheel Bearings I I I I I I I I I I I
19 Rear Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
20 Rear Suspension I I I I I I I I I I I
21 Motor - I I I I I I I I I I
22 Motor Seal (*) I I I I I I R I I I I
Notes: I = Inspect, L = Lubricate (with grease), R = Replace
(*) Replacing the motor seal at the specified maintenance interval helps maintain motor sealing integrity and prevent potential damage or failures.
No. Maintenance Item Vehicle Mileage or Service Period
X 1000 km 1 5 10 15 20 25 30 35 40 45 50
Month 1 6 12 18 24 30 36 42 48 54 60
1 Brake Levers I I I I I I I I I I I
- L L L L L L L L L L
2 Lights / Horn / HMI Display I I I I I I I I I I I
3 Handlebar Grips, Throttle Grip I I I I I I I I I I I
4 Side Stand / Center Stand I I I I I I I I I I I
- L L L L L L L L L L
5 Seat Lock Mechanism Inspection - L L L L L L L L L L
6 Lithium-ion Battery Connector Ports I I I I I I I I I I I
External Appearance - I I I I I I I I I I
7 Charging Port I I I I I I I I I I I
8 Brake Fluid I I I I R I I I R I I
9 Front Brake I I I I I I I I I I I
10 Front Brake Hose I I I I I I I I I I I
11 Front Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Front Wheel Bearings I I I I I I I I I I I
Front Wheel Seal I L L L L L L L L L L
12 Front Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
13 Steering Head Bearings I I I I I I I I I I I
- - - - L - - - L - -
14 Front Suspension I I I I I I I I I I I
15 Rear Brake I I I I I I I I I I I
16 Rear Brake Cable I I I I I I I I I I I
17 Rear Brake Assembly Mounting Bolt I I I I I I I I I I I
18 Rear Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Rear Wheel Bearings I I I I I I I I I I I
19 Rear Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
20 Rear Suspension I I I I I I I I I I I
21 Motor - I I I I I I I I I I
22 Battery-to-Battery Tray and Frame Connections M6, M8, M10 Bolts and Nuts I I I I I I I I I I I
23 Motor Seal (*) I I I I I I R I I I I
Notes: I = Inspect, L = Lubricate (with grease), R = Replace
(*) Replacing the motor seal at the specified maintenance interval helps maintain motor sealing integrity and prevent potential damage or failures.
No. Maintenance Item Vehicle Mileage or Service Period (Whichever Comes First)
X 1000 km 1 5 10 15 20 25 30 35 40 45 50
Month 1 6 12 18 24 30 36 42 48 54 60
1 Brake Levers I I I I I I I I I I I
- L L L L L L L L L L
2 Lights / Horn / HMI Display I I I I I I I I I I I
3 Handlebar Grips, Throttle Grip I I I I I I I I I I I
4 Side Stand / Center Stand I I I I I I I I I I I
- L L L L L L L L L L
5 Seat Lock Mechanism Inspection - L L L L L L L L L L
6 Lithium-ion Battery Connector Ports I I I I I I I I I I I
External Appearance - I I I I I I I I I I
7 Charging Port I I I I I I I I I I I
8 Battery Connector I I I I I I I I I I I
9 Brake Fluid I I I I R I I I R I I
10 Front Brake I I I I I I I I I I I
11 Front Brake Hose I I I I I I I I I I I
12 Front Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Front Wheel Bearings I I I I I I I I I I I
Front Wheel Seal I L L L L L L L L L L
13 Front Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
14 Steering Head Bearings I I I I I I I I I I I
- - - - L - - - L - -
15 Front Suspension I I I I I I I I I I I
16 Rear Brake I I I I I I I I I I I
17 Rear Brake Cable I I I I I I I I I I I
18 Rear Brake Assembly Mounting Bolt I I I I I I I I I I I
19 Rear Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Rear Wheel Bearings I I I I I I I I I I I
20 Rear Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
21 Rear Suspension I I I I I I I I I I I
22 Motor - I I I I I I I I I I
23 Motor Seal (*) I I I I I I R I I I I
Notes: I = Inspect, L = Lubricate (with grease), R = Replace
(*) Replacing the motor seal at the specified maintenance interval helps maintain motor sealing integrity and prevent potential damage or failures.
No. Maintenance Item Vehicle Mileage or Service Period
X 1000 km 1 5 10 15 20 25 30 35 40 45 50
Month 1 6 12 18 24 30 36 42 48 54 60
1 Brake Levers I I I I I I I I I I I
- L L L L L L L L L L
2 Lights / Horn / HMI Display I I I I I I I I I I I
3 Handlebar Grips, Throttle Grip I I I I I I I I I I I
4 Side Stand / Center Stand I I I I I I I I I I I
- L L L L L L L L L L
5 Seat Lock Mechanism Inspection - L L L L L L L L L L
6 Lithium-ion Battery Connector Ports I I I I I I I I I I I
External Appearance - I I I I I I I I I I
7 Charging Port I I I I I I I I I I I
8 Lithium-ion Battery Connector I I I I I I I I I I I
9 Brake Fluid I I I I R I I I R I I
10 Front Brake I I I I I I I I I I I
11 Front Brake Hose I I I I I I I I I I I
12 Front Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Front Wheel Bearings I I I I I I I I I I I
Front Wheel Seal I L L L L L L L L L L
13 Front Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
14 Steering Head Bearings I I I I I I I I I I I
- - - - L - - - L - -
15 Front Suspension I I I I I I I I I I I
16 Rear Brake I I I I I I I I I I I
17 Rear Brake Cable I I I I I I I I I I I
18 Rear Brake Assembly Mounting Bolt I I I I I I I I I I I
19 Rear Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Rear Wheel Bearings I I I I I I I I I I I
20 Rear Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
21 Rear Suspension I I I I I I I I I I I
22 Motor - I I I I I I I I I I
23 Motor Seal (*) I I I I I I R I I I I
Notes: I = Inspect, L = Lubricate (with grease), R = Replace
(*) Replacing the motor seal at the specified maintenance interval helps maintain motor sealing integrity and prevent potential damage or failures.
No. Maintenance Item Vehicle Mileage or Service Period
X 1000 km 1 5 10 15 20 25 30 35 40 45 50
Month 1 6 12 18 24 30 36 42 48 54 60
1 Brake Levers I I I I I I I I I I I
- L L L L L L L L L L
2 Lights / Horn / HMI Display I I I I I I I I I I I
3 Handlebar Grips, Throttle Grip I I I I I I I I I I I
4 Side Stand / Center Stand I I I I I I I I I I I
- L L L L L L L L L L
5 Seat Lock Mechanism Inspection - L L L L L L L L L L
6 Lithium-ion Battery Connector Ports I I I I I I I I I I I
External Appearance - I I I I I I I I I I
7 Lithium-ion Battery Connector I I I I I I I I I I I
8 Brake Fluid I I I I R I I I R I I
9 Front Brake I I I I I I I I I I I
10 Front Brake Hose I I I I I I I I I I I
11 Front Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Front Wheel Bearings I I I I I I I I I I I
Front Wheel Seal I L L L L L L L L L L
12 Front Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
13 Steering Head Bearings I I I I I I I I I I I
- - - - L - - - L - -
14 Front Suspension I I I I I I I I I I I
15 Rear Brake I I I I I I I I I I I
16 Rear Brake Cable I I I I I I I I I I I
17 Rear Brake Assembly Mounting Bolt I I I I I I I I I I I
18 Rear Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Rear Wheel Bearings I I I I I I I I I I I
19 Rear Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
20 Rear Suspension I I I I I I I I I I I
21 Motor - I I I I I I I I I I
22 Motor Seal (*) I I I I I I R I I I I
Notes: I = Inspect, L = Lubricate (with grease), R = Replace
(*) Replacing the motor seal at the specified maintenance interval helps maintain motor sealing integrity and prevent potential damage or failures.
No. Maintenance Item Vehicle Mileage or Service Period
X 1000 km 1 5 10 15 20 25 30 35 40 45 50
Month 1 6 12 18 24 30 36 42 48 54 60
1 Brake Levers I I I I I I I I I I I
- L L L L L L L L L L
2 Lights / Horn / HMI Display I I I I I I I I I I I
3 Handlebar Grips, Throttle Grip I I I I I I I I I I I
4 Side Stand / Center Stand I I I I I I I I I I I
- L L L L L L L L L L
5 Seat Lock Mechanism Inspection - L L L L L L L L L L
6 Lead-acid Battery Terminals I I I I I I I I I I I
External Appearance - I I I I I I I I I I
7 Charging Port I I I I I I I I I I I
8 Brake Fluid I I I I R I I I R I I
9 Front Brake I I I I I I I I I I I
10 Front Brake Hose I I I I I I I I I I I
11 Front Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Front Wheel Bearings I I I I I I I I I I I
Front Wheel Seal I L L L L L L L L L L
12 Front Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
13 Steering Head Bearings I I I I I I I I I I I
- - - - L - - - L - -
14 Front Suspension I I I I I I I I I I I
15 Rear Brake I I I I I I I I I I I
16 Rear Brake Cable I I I I I I I I I I I
17 Rear Brake Assembly Mounting Bolt I I I I I I I I I I I
18 Rear Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Rear Wheel Bearings I I I I I I I I I I I
19 Rear Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
20 Rear Suspension I I I I I I I I I I I
21 Motor - I I I I I I I I I I
22 Motor Seal (*) I I I I I I R I I I I
Notes: I = Inspect, L = Lubricate (with grease), R = Replace
(*) Replacing the motor seal at the specified maintenance interval helps maintain motor sealing integrity and prevent potential damage or failures.
No. Maintenance Item Vehicle Mileage or Service Period
X 1000 km 1 5 10 15 20 25 30 35 40 45 50
Month 1 6 12 18 24 30 36 42 48 54 60
1 Brake Levers I I I I I I I I I I I
- L L L L L L L L L L
2 Lights / Horn / HMI Display I I I I I I I I I I I
3 Handlebar Grips, Throttle Grip I I I I I I I I I I I
4 Side Stand / Center Stand I I I I I I I I I I I
- L L L L L L L L L L
5 Seat Lock Mechanism Inspection - L L L L L L L L L L
6 Lead-acid Battery Terminals I I I I I I I I I I I
External Appearance - I I I I I I I I I I
7 Charging Port I I I I I I I I I I I
8 Brake Fluid I I I I R I I I R I I
9 Front Brake I I I I I I I I I I I
10 Front Brake Hose I I I I I I I I I I I
11 Front Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Front Wheel Bearings I I I I I I I I I I I
Front Wheel Seal I L L L L L L L L L L
12 Front Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
13 Steering Head Bearings I I I I I I I I I I I
- - - - L - - - L - -
14 Front Suspension I I I I I I I I I I I
15 Rear Brake I I I I I I I I I I I
16 Rear Brake Cable I I I I I I I I I I I
17 Rear Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Rear Wheel Bearings I I I I I I I I I I I
18 Rear Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
19 Rear Suspension I I I I I I I I I I I
20 Motor - I I I I I I I I I I
21 Motor Seal (*) I I I I I I R I I I I
Notes: I = Inspect, L = Lubricate (with grease), R = Replace
(*) Replacing the motor seal at the specified maintenance interval helps maintain motor sealing integrity and prevent potential damage or failures.
No. Maintenance Item Vehicle Mileage or Service Period (Whichever Comes First)
X 1000 km 1 5 10 15 20 25 30 35 40 45 50
Month 1 6 12 18 24 30 36 42 48 54 60
1 Brake Levers I I I I I I I I I I I
- L L L L L L L L L L
2 Lights / Horn / HMI Display I I I I I I I I I I I
3 Handlebar Grips, Throttle Grip I I I I I I I I I I I
4 Side Stand / Center Stand I I I I I I I I I I I
- L L L L L L L L L L
5 Seat Lock Mechanism Inspection - L L L L L L L L L L
6 Lithium-ion Battery Connector Ports I I I I I I I I I I I
External Appearance - I I I I I I I I I I
7 Charging Port I I I I I I I I I I I
8 Brake Fluid I I I I R I I I R I I
9 Front Brake I I I I I I I I I I I
10 Front Brake Hose I I I I I I I I I I I
11 Front Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Front Wheel Bearings I I I I I I I I I I I
Front Wheel Seal I L L L L L L L L L L
12 Front Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
13 Steering Head Bearings I I I I I I I I I I I
- - - - L - - - L - -
14 Front Suspension I I I I I I I I I I I
15 Rear Brake I I I I I I I I I I I
16 Rear Brake Cable I I I I I I I I I I I
17 Rear Brake Assembly Mounting Bolt I I I I I I I I I I I
18 Rear Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Rear Wheel Bearings I I I I I I I I I I I
19 Rear Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
20 Rear Suspension I I I I I I I I I I I
21 Motor - I I I I I I I I I I
22 Motor Seal (*) I I I I I I R I I I I
Notes: I = Inspect, L = Lubricate (with grease), R = Replace
(*) Replacing the motor seal at the specified maintenance interval helps maintain motor sealing integrity and prevent potential damage or failures.
No. Maintenance Item Vehicle Mileage or Service Period (Whichever Comes First)
X 1000 km 1 5 10 15 20 25 30 35 40 45 50
Month 1 6 12 18 24 30 36 42 48 54 60
1 Brake Levers I I I I I I I I I I I
- L L L L L L L L L L
2 Lights / Horn / HMI Display I I I I I I I I I I I
3 Handlebar Grips, Throttle Grip I I I I I I I I I I I
4 Side Stand / Center Stand I I I I I I I I I I I
- L L L L L L L L L L
5 Seat Lock Mechanism Inspection - L L L L L L L L L L
6 Lithium-ion Battery Connector Ports I I I I I I I I I I I
External Appearance - I I I I I I I I I I
7 Charging Port I I I I I I I I I I I
8 Brake Fluid I I I I R I I I R I I
9 Front Brake I I I I I I I I I I I
10 Front Brake Hose I I I I I I I I I I I
11 Front Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Front Wheel Bearings I I I I I I I I I I I
Front Wheel Seal I L L L L L L L L L L
12 Front Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
13 Steering Head Bearings I I I I I I I I I I I
- - - - L - - - L - -
14 Front Suspension I I I I I I I I I I I
15 Rear Brake I I I I I I I I I I I
16 Rear Brake Cable I I I I I I I I I I I
17 Rear Brake Assembly Mounting Bolt I I I I I I I I I I I
18 Rear Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Rear Wheel Bearings I I I I I I I I I I I
19 Rear Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
20 Rear Suspension I I I I I I I I I I I
21 Motor - I I I I I I I I I I
22 Motor Seal (*) I I I I I I R I I I I
Notes: I = Inspect, L = Lubricate (with grease), R = Replace
(*) Replacing the motor seal at the specified maintenance interval helps maintain motor sealing integrity and prevent potential damage or failures.
No. Maintenance Item Vehicle Mileage or Service Period (Whichever Comes First)
X 1000 km 1 5 10 15 20 25 30 35 40 45 50
Month 1 6 12 18 24 30 36 42 48 54 60
1 Brake Levers I I I I I I I I I I I
- L L L L L L L L L L
2 Lights / Horn / HMI Display I I I I I I I I I I I
3 Handlebar Grips, Throttle Grip I I I I I I I I I I I
4 Side Stand / Center Stand I I I I I I I I I I I
- L L L L L L L L L L
5 Seat Lock Mechanism Inspection - L L L L L L L L L L
6 Lithium-ion Battery Connector Ports I I I I I I I I I I I
External Appearance - I I I I I I I I I I
7 Charging Port I I I I I I I I I I I
8 Brake Fluid I I I I R I I I R I I
9 Front Brake I I I I I I I I I I I
10 Front Brake Hose I I I I I I I I I I I
11 Front Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Front Wheel Bearings I I I I I I I I I I I
Front Wheel Seal I L L L L L L L L L L
12 Front Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
13 Steering Head Bearings I I I I I I I I I I I
- - - - L - - - L - -
14 Front Suspension I I I I I I I I I I I
15 Rear Brake I I I I I I I I I I I
16 Rear Brake Cable I I I I I I I I I I I
17 Rear Brake Assembly Mounting Bolt I I I I I I I I I I I
18 Rear Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Rear Wheel Bearings I I I I I I I I I I I
19 Rear Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
20 Rear Suspension I I I I I I I I I I I
21 Motor - I I I I I I I I I I
22 Motor Seal (*) I I I I I I R I I I I
Notes: I = Inspect, L = Lubricate (with grease), R = Replace
(*) Replacing the motor seal at the specified maintenance interval helps maintain motor sealing integrity and prevent potential damage or failures.
No. Maintenance Item Vehicle Mileage or Service Period (Whichever Comes First)
X 1000 km 1 5 10 15 20 25 30 35 40 45 50
Month 1 6 12 18 24 30 36 42 48 54 60
1 Brake Levers I I I I I I I I I I I
- L L L L L L L L L L
2 Lights / Horn / HMI Display I I I I I I I I I I I
3 Handlebar Grips, Throttle Grip I I I I I I I I I I I
4 Side Stand / Center Stand I I I I I I I I I I I
- L L L L L L L L L L
5 Seat Lock Mechanism Inspection - L L L L L L L L L L
6 Lead-acid Battery Terminals I I I I I I I I I I I
External Appearance - I I I I I I I I I I
7 Charging Port I I I I I I I I I I I
8 Brake Fluid I I I I R I I I R I I
9 Front Brake I I I I I I I I I I I
10 Front Brake Hose I I I I I I I I I I I
11 Front Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Front Wheel Bearings I I I I I I I I I I I
Front Wheel Seal I L L L L L L L L L L
12 Front Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
13 Steering Head Bearings I I I I I I I I I I I
- - - - L - - - L - -
14 Front Suspension I I I I I I I I I I I
15 Rear Brake I I I I I I I I I I I
16 Rear Brake Cable I I I I I I I I I I I
17 Rear Brake Assembly Mounting Bolt I I I I I I I I I I I
18 Rear Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Rear Wheel Bearings I I I I I I I I I I I
19 Rear Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
20 Rear Suspension I I I I I I I I I I I
21 Motor - I I I I I I I I I I
22 Motor Seal (*) I I I I I I R I I I I
Notes: I = Inspect, L = Lubricate (with grease), R = Replace
(*) Replacing the motor seal at the specified maintenance interval helps maintain motor sealing integrity and prevent potential damage or failures.
No. Maintenance Item Vehicle Mileage or Service Period (Whichever Comes First)
X 1000 km 1 5 10 15 20 25 30 35 40 45 50
Month 1 6 12 18 24 30 36 42 48 54 60
1 Brake Levers I I I I I I I I I I I
- L L L L L L L L L L
2 Lights / Horn / HMI Display I I I I I I I I I I I
3 Handlebar Grips, Throttle Grip I I I I I I I I I I I
4 Side Stand / Center Stand I I I I I I I I I I I
- L L L L L L L L L L
5 Seat Lock Mechanism Inspection - L L L L L L L L L L
6 Lithium-ion Battery Connector Ports I I I I I I I I I I I
External Appearance - I I I I I I I I I I
7 Charging Port I I I I I I I I I I I
8 Battery Connector I I I I I I I I I I I
9 Brake Fluid I I I I R I I I R I I
10 Front Brake I I I I I I I I I I I
11 Front Brake Hose I I I I I I I I I I I
12 Front Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Front Wheel Bearings I I I I I I I I I I I
Front Wheel Seal I L L L L L L L L L L
13 Front Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
14 Steering Head Bearings I I I I I I I I I I I
- - - - L - - - L - -
15 Front Suspension I I I I I I I I I I I
16 Rear Brake I I I I I I I I I I I
17 Rear Brake Cable I I I I I I I I I I I
18 Rear Brake Assembly Mounting Bolt I I I I I I I I I I I
19 Rear Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Rear Wheel Bearings I I I I I I I I I I I
20 Rear Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
21 Rear Suspension I I I I I I I I I I I
22 Motor - I I I I I I I I I I
23 Motor Seal (*) I I I I I I R I I I I
Notes: I = Inspect, L = Lubricate (with grease), R = Replace
(*) Replacing the motor seal at the specified maintenance interval helps maintain motor sealing integrity and prevent potential damage or failures.
No. Maintenance Item Vehicle Mileage or Service Period (Whichever Comes First)
X 1000 km 1 5 10 15 20 25 30 35 40 45 50
Month 1 6 12 18 24 30 36 42 48 54 60
1 Brake Levers I I I I I I I I I I I
- L L L L L L L L L L
2 Lights / Horn / HMI Display I I I I I I I I I I I
3 Handlebar Grips, Throttle Grip I I I I I I I I I I I
4 Side Stand / Center Stand I I I I I I I I I I I
- L L L L L L L L L L
5 Seat Lock Mechanism Inspection - L L L L L L L L L L
6 Lithium-ion Battery Connector Ports I I I I I I I I I I I
External Appearance - I I I I I I I I I I
7 Charging Port I I I I I I I I I I I
8 Battery Connector I I I I I I I I I I I
9 Brake Fluid I I I I R I I I R I I
10 Front Brake I I I I I I I I I I I
11 Front Brake Hose I I I I I I I I I I I
12 Front Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Front Wheel Bearings I I I I I I I I I I I
Front Wheel Seal I L L L L L L L L L L
13 Front Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
14 Steering Head Bearings I I I I I I I I I I I
- - - - L - - - L - -
15 Front Suspension I I I I I I I I I I I
16 Rear Brake I I I I I I I I I I I
17 Rear Brake Cable I I I I I I I I I I I
18 Rear Brake Assembly Mounting Bolt I I I I I I I I I I I
19 Rear Wheel Rim External Appearance I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I
Rear Wheel Bearings I I I I I I I I I I I
20 Rear Tire Tread Depth - I I I I I I I I I I
Tire Pressure I I I I I I I I I I I
21 Rear Suspension I I I I I I I I I I I
22 Motor - I I I I I I I I I I
23 Motor Seal (*) I I I I I I R I I I I
Notes: I = Inspect, L = Lubricate (with grease), R = Replace
(*) Replacing the motor seal at the specified maintenance interval helps maintain motor sealing integrity and prevent potential damage or failures.
No. Maintenance Item Vehicle Mileage or Service Period (Whichever Comes First)
X 1000 km 1 5 10 15 20 25 30 35 40 45 50 55 60
Month 1 6 12 18 24 30 36 42 48 54 60 66 72
1 Brake Levers I I I I I I I I I I I I I
- L L L L L L L L L L L L
2 Lights / Horn / HMI Display I I I I I I I I I I I I I
3 Throttle Grip and Cover I I I I I I I I I I I I I
4 Side Stand / Center Stand I I I I I I I I I I I I I
- L L L L L L L L L L L L
5 Seat Lock Mechanism Inspection - L L L L L L L L L L L L
6 Lithium-ion Battery Connector Ports I I I I I I I I I I I I I
External Appearance - I I I I I I I I I I I I
7 Charging Port I I I I I I I I I I I I I
8 Front Brake I I I I I I I I I I I I I
9 Front Brake Cable I I I I I I I I I I I I I
10 Front Wheel Rim External Appearance I I I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I I I
Front Wheel Bearings I I I I I I I I I I I I I
Front Wheel Seal I L L L L L L L L L L L L
11 Front Tire Tread Depth - I I I I I I I I I I I I
Tire Pressure I I I I I I I I I I I I I
12 Steering Head Bearings I I I I I I I I I I I I I
- - - - L - - - L - - - L
13 Front Suspension I I I I I I I I I I I I I
14 Rear Brake I I I I I I I I I I I I I
15 Rear Brake Cable I I I I I I I I I I I I I
16 Rear Wheel Rim External Appearance I I I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I I I
Rear Wheel Bearings I I I I I I I I I I I I I
17 Rear Tire Tread Depth - I I I I I I I I I I I I
Tire Pressure I I I I I I I I I I I I I
18 Rear Suspension I I I I I I I I I I I I I
19 Motor - I I I I I I I I I I I I
20 Motor Seal (*) I I I I I I R I I I I I R
Notes: I = Inspect, L = Lubricate (with grease), R = Replace
(*) Replacing the motor seal at the specified maintenance interval helps maintain motor sealing integrity and prevent potential damage or failures.
No. Maintenance Item Vehicle Mileage or Service Period (Whichever Comes First)
X 1000 km 1 5 10 15 20 25 30 35 40 45 50 55 60
Month 1 6 12 18 24 30 36 42 48 54 60 66 72
1 Brake Levers I I I I I I I I I I I I I
- L L L L L L L L L L L L
2 Lights / Horn / HMI Display I I I I I I I I I I I I I
3 Throttle Grip and Cover I I I I I I I I I I I I I
4 Side Stand / Center Stand I I I I I I I I I I I I I
- L L L L L L L L L L L L
5 Seat Lock Mechanism Inspection - L L L L L L L L L L L L
6 Lithium-ion Battery Connector Ports I I I I I I I I I I I I I
External Appearance - I I I I I I I I I I I I
7 Charging Port I I I I I I I I I I I I I
8 Battery Connector I I I I I I I I I I I I I
9 Front Brake I I I I I I I I I I I I I
10 Front Brake Cable I I I I I I I I I I I I I
11 Front Wheel Rim External Appearance I I I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I I I
Front Wheel Bearings I I I I I I I I I I I I I
Front Wheel Seal I L L L L L L L L L L L L
12 Front Tire Tread Depth - I I I I I I I I I I I I
Tire Pressure I I I I I I I I I I I I I
13 Steering Head Bearings I I I I I I I I I I I I I
- - - - L - - - L - - - L
14 Front Suspension I I I I I I I I I I I I I
15 Rear Brake I I I I I I I I I I I I I
16 Rear Brake Cable I I I I I I I I I I I I I
17 Rear Wheel Rim External Appearance I I I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I I I
Rear Wheel Bearings I I I I I I I I I I I I I
18 Rear Tire Tread Depth - I I I I I I I I I I I I
Tire Pressure I I I I I I I I I I I I I
19 Rear Suspension I I I I I I I I I I I I I
20 Motor - I I I I I I I I I I I I
21 Motor Seal (*) I I I I I I R I I I I I R
Notes: I = Inspect, L = Lubricate (with grease), R = Replace
(*) Replacing the motor seal at the specified maintenance interval helps maintain motor sealing integrity and prevent potential damage or failures.
No. Maintenance Item Vehicle Mileage or Service Period (Whichever Comes First)
X 1000 km 1 5 10 15 20 25 30 35 40 45 50 55 60
Month 1 6 12 18 24 30 36 42 48 54 60 66 72
1 Brake Levers I I I I I I I I I I I I I
- L L L L L L L L L L L L
2 Lights / Horn / HMI Display I I I I I I I I I I I I I
3 Throttle Grip and Cover I I I I I I I I I I I I I
4 Side Stand / Center Stand I I I I I I I I I I I I I
- L L L L L L L L L L L L
5 Seat Lock Mechanism Inspection - L L L L L L L L L L L L
6 Lithium-ion Battery Connector Ports I I I I I I I I I I I I I
External Appearance - I I I I I I I I I I I I
7 Charging Port I I I I I I I I I I I I I
8 USB Charging Port - - - - I - - - I - - - I
9 Battery Connection Ports I I I I I I I I I I I I I
10 Brake Fluid I I I I R I I I R I I I R
11 Front Brake I I I I I I I I I I I I I
12 Front Brake Hose I I I I I I I I I I I I I
13 Front Wheel Rim External Appearance I I I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I I I
Front Wheel Bearings I I I I I I I I I I I I I
Front Wheel Seal I L L L L L L L L L L L L
14 Front Tire Tread Depth - I I I I I I I I I I I I
Tire Pressure I I I I I I I I I I I I I
15 Steering Head Bearings I I I I I I I I I I I I I
- - - - L - - - L - - - L
16 Front Suspension I I I I I I I I I I I I I
17 Rear Brake I I I I I I I I I I I I I
18 Rear Brake Cable I I I I I I I I I I I I I
19 Rear Brake Assembly Mounting Bolt I I I I I I I I I I I I I
20 Rear Wheel Rim External Appearance I I I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I I I
Rear Wheel Bearings I I I I I I I I I I I I I
21 Rear Tire Tread Depth - I I I I I I I I I I I I
Tire Pressure I I I I I I I I I I I I I
22 Rear Suspension I I I I I I I I I I I I I
23 Motor - I I I I I I I I I I I I
24 Motor Seal (*) I I I I I I R I I I I I R
25 Battery Tray Felt Liner I I I I I I I I I I I I I
Notes: I = Inspect, L = Lubricate (with grease), R = Replace
(*) Replacing the motor seal at the specified maintenance interval helps maintain motor sealing integrity and prevent potential damage or failures.
No. Maintenance Item Vehicle Mileage or Service Period (Whichever Comes First)
X 1000 km 1 5 10 15 20 25 30 35 40 45 50 55 60
Month 1 6 12 18 24 30 36 42 48 54 60 66 72
1 Brake Levers I I I I I I I I I I I I I
- L L L L L L L L L L L L
2 Lights / Horn / HMI Display I I I I I I I I I I I I I
3 Throttle Grip and Cover I I I I I I I I I I I I I
4 Side Stand / Center Stand I I I I I I I I I I I I I
- L L L L L L L L L L L L
5 Seat Lock Mechanism Inspection - L L L L L L L L L L L L
6 Lithium-ion Battery Connector Ports I I I I I I I I I I I I I
External Appearance - I I I I I I I I I I I I
7 Charging Port I I I I I I I I I I I I I
8 USB Charging Port - - - - I - - - I - - - I
9 Battery Connection Ports I I I I I I I I I I I I I
10 Brake Fluid I I I I R I I I R I I I R
11 Front Brake I I I I I I I I I I I I I
12 Front Brake Hose I I I I I I I I I I I I I
13 Front Wheel Rim External Appearance I I I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I I I
Front Wheel Bearings I I I I I I I I I I I I I
Front Wheel Seal I L L L L L L L L L L L L
14 Front Tire Tread Depth - I I I I I I I I I I I I
Tire Pressure I I I I I I I I I I I I I
15 Steering Head Bearings I I I I I I I I I I I I I
- - - - L - - - L - - - L
16 Front Suspension I I I I I I I I I I I I I
17 Rear Brake I I I I I I I I I I I I I
18 Rear Brake Cable I I I I I I I I I I I I I
19 Rear Brake Assembly Mounting Bolt I I I I I I I I I I I I I
20 Rear Wheel Rim External Appearance I I I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I I I
Rear Wheel Bearings I I I I I I I I I I I I I
21 Rear Tire Tread Depth - I I I I I I I I I I I I
Tire Pressure I I I I I I I I I I I I I
22 Rear Suspension I I I I I I I I I I I I I
23 Motor - I I I I I I I I I I I I
24 Motor Seal (*) I I I I I I R I I I I I R
25 Battery Tray Felt Liner I I I I I I I I I I I I I
Notes: I = Inspect, L = Lubricate (with grease), R = Replace
(*) Replacing the motor seal at the specified maintenance interval helps maintain motor sealing integrity and prevent potential damage or failures.
No. Maintenance Item Vehicle Mileage or Service Period (Whichever Comes First)
X 1000 km 1 5 10 15 20 25 30 35 40 45 50 55 60
Month 1 6 12 18 24 30 36 42 48 54 60 66 72
1 Brake Levers I I I I I I I I I I I I I
- L L L L L L L L L L L L
2 Lights / Horn / HMI Display I I I I I I I I I I I I I
3 Throttle Grip and Cover I I I I I I I I I I I I I
4 Side Stand / Center Stand I I I I I I I I I I I I I
- L L L L L L L L L L L L
5 Seat Lock Mechanism Inspection - L L L L L L L L L L L L
6 Lithium-ion Battery Connector Ports I I I I I I I I I I I I I
External Appearance - I I I I I I I I I I I I
7 Charging Port I I I I I I I I I I I I I
8 USB Charging Port - - - - I - - - I - - - I
9 Battery Connection Ports I I I I I I I I I I I I I
10 Brake Fluid I I I I R I I I R I I I R
11 Front Brake I I I I I I I I I I I I I
12 Front Brake Hose I I I I I I I I I I I I I
13 Front Wheel Rim External Appearance I I I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I I I
Front Wheel Bearings I I I I I I I I I I I I I
Front Wheel Seal I L L L L L L L L L L L L
14 Front Tire Tread Depth - I I I I I I I I I I I I
Tire Pressure I I I I I I I I I I I I I
15 Steering Head Bearings I I I I I I I I I I I I I
- - - - L - - - L - - - L
16 Front Suspension I I I I I I I I I I I I I
17 Rear Brake I I I I I I I I I I I I I
18 Rear Brake Cable I I I I I I I I I I I I I
19 Rear Brake Assembly Mounting Bolt I I I I I I I I I I I I I
20 Rear Wheel Rim External Appearance I I I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I I I
Rear Wheel Bearings I I I I I I I I I I I I I
21 Rear Tire Tread Depth - I I I I I I I I I I I I
Tire Pressure I I I I I I I I I I I I I
22 Rear Suspension I I I I I I I I I I I I I
23 Motor - I I I I I I I I I I I I
24 Motor Seal (*) I I I I I I R I I I I I R
25 Battery Tray Felt Liner I I I I I I I I I I I I I
Notes: I = Inspect, L = Lubricate (with grease), R = Replace
(*) Replacing the motor seal at the specified maintenance interval helps maintain motor sealing integrity and prevent potential damage or failures.
No. Maintenance Item Vehicle Mileage or Service Period (Whichever Comes First)
X 1000 km 1 5 10 15 20 25 30 35 40 45 50 55 60
Month 1 6 12 18 24 30 36 42 48 54 60 66 72
1 Brake Levers I I I I I I I I I I I I I
- L L L L L L L L L L L L
2 Lights / Horn / HMI Display I I I I I I I I I I I I I
3 Throttle Grip and Cover I I I I I I I I I I I I I
4 Side Stand / Center Stand I I I I I I I I I I I I I
- L L L L L L L L L L L L
5 Seat Lock Mechanism Inspection - L L L L L L L L L L L L
6 Lithium-ion Battery Connector Ports I I I I I I I I I I I I I
External Appearance - I I I I I I I I I I I I
7 Charging Port I I I I I I I I I I I I I
8 USB Charging Port - - - - I - - - I - - - I
9 Battery Connection Ports I I I I I I I I I I I I I
10 Brake Fluid I I I I R I I I R I I I R
11 Front Brake I I I I I I I I I I I I I
12 Front Brake Hose I I I I I I I I I I I I I
13 Front Wheel Rim External Appearance I I I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I I I
Front Wheel Bearings I I I I I I I I I I I I I
Front Wheel Seal I L L L L L L L L L L L L
14 Front Tire Tread Depth - I I I I I I I I I I I I
Tire Pressure I I I I I I I I I I I I I
15 Steering Head Bearings I I I I I I I I I I I I I
- - - - L - - - L - - - L
16 Front Suspension I I I I I I I I I I I I I
17 Rear Brake I I I I I I I I I I I I I
18 Rear Brake Cable I I I I I I I I I I I I I
19 Rear Brake Assembly Mounting Bolt I I I I I I I I I I I I I
20 Rear Wheel Rim External Appearance I I I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I I I
Rear Wheel Bearings I I I I I I I I I I I I I
21 Rear Tire Tread Depth - I I I I I I I I I I I I
Tire Pressure I I I I I I I I I I I I I
22 Rear Suspension I I I I I I I I I I I I I
23 Motor - I I I I I I I I I I I I
24 Motor Seal (*) I I I I I I R I I I I I R
25 Battery Tray Felt Liner I I I I I I I I I I I I I
Notes: I = Inspect, L = Lubricate (with grease), R = Replace
(*) Replacing the motor seal at the specified maintenance interval helps maintain motor sealing integrity and prevent potential damage or failures.
No. Maintenance Item Vehicle Mileage or Service Period (Whichever Comes First)
X 1000 km 1 5 10 15 20 25 30 35 40 45 50 55 60
Month 1 6 12 18 24 30 36 42 48 54 60 66 72
1 Brake Levers I I I I I I I I I I I I I
- L L L L L L L L L L L L
2 Lights / Horn / HMI Display I I I I I I I I I I I I I
3 Throttle Grip and Cover I I I I I I I I I I I I I
4 Side Stand / Center Stand I I I I I I I I I I I I I
- L L L L L L L L L L L L
5 Seat Lock Mechanism Inspection - L L L L L L L L L L L L
6 Lithium-ion Battery Connector Ports I I I I I I I I I I I I I
External Appearance - I I I I I I I I I I I I
7 Charging Port I I I I I I I I I I I I I
8 USB Charging Port - - - - I - - - I - - - I
9 Battery Connection Ports I I I I I I I I I I I I I
10 Brake Fluid I I I I R I I I R I I I R
11 Front Brake I I I I I I I I I I I I I
12 Front Brake Hose I I I I I I I I I I I I I
13 Front Wheel Rim External Appearance I I I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I I I
Front Wheel Bearings I I I I I I I I I I I I I
Front Wheel Seal I L L L L L L L L L L L L
14 Front Tire Tread Depth - I I I I I I I I I I I I
Tire Pressure I I I I I I I I I I I I I
15 Steering Head Bearings I I I I I I I I I I I I I
- - - - L - - - L - - - L
16 Front Suspension I I I I I I I I I I I I I
17 Rear Brake I I I I I I I I I I I I I
18 Rear Brake Cable I I I I I I I I I I I I I
19 Rear Brake Assembly Mounting Bolt I I I I I I I I I I I I I
20 Rear Wheel Rim External Appearance I I I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I I I
Rear Wheel Bearings I I I I I I I I I I I I I
21 Rear Tire Tread Depth - I I I I I I I I I I I I
Tire Pressure I I I I I I I I I I I I I
22 Rear Suspension I I I I I I I I I I I I I
23 Motor - I I I I I I I I I I I I
24 Motor Seal (*) I I I I I I R I I I I I R
25 Battery Tray Felt Liner I I I I I I I I I I I I I
Notes: I = Inspect, L = Lubricate (with grease), R = Replace
(*) Replacing the motor seal at the specified maintenance interval helps maintain motor sealing integrity and prevent potential damage or failures.
No. Maintenance Item Vehicle Mileage or Service Period (Whichever Comes First)
X 1000 km 1 5 10 15 20 25 30 35 40 45 50 55 60
Month 1 6 12 18 24 30 36 42 48 54 60 66 72
1 Brake Levers I I I I I I I I I I I I I
- L L L L L L L L L L L L
2 Lights / Horn / HMI Display I I I I I I I I I I I I I
3 Throttle Grip and Cover I I I I I I I I I I I I I
4 Side Stand / Center Stand I I I I I I I I I I I I I
- L L L L L L L L L L L L
5 Seat Lock Mechanism Inspection - L L L L L L L L L L L L
6 Lithium-ion Battery Connector Ports I I I I I I I I I I I I I
External Appearance - I I I I I I I I I I I I
7 Charging Port I I I I I I I I I I I I I
8 USB Charging Port - - - - I - - - I - - - I
9 Battery Connection Ports I I I I I I I I I I I I I
10 Brake Fluid I I I I R I I I R I I I R
11 Front Brake I I I I I I I I I I I I I
12 Front Brake Hose I I I I I I I I I I I I I
13 Front Wheel Rim External Appearance I I I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I I I
Front Wheel Bearings I I I I I I I I I I I I I
Front Wheel Seal I L L L L L L L L L L L L
14 Front Tire Tread Depth - I I I I I I I I I I I I
Tire Pressure I I I I I I I I I I I I I
15 Steering Head Bearings I I I I I I I I I I I I I
- - - - L - - - L - - - L
16 Front Suspension I I I I I I I I I I I I I
17 Rear Brake I I I I I I I I I I I I I
18 Rear Brake Cable I I I I I I I I I I I I I
19 Rear Brake Assembly Mounting Bolt I I I I I I I I I I I I I
20 Rear Wheel Rim External Appearance I I I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I I I
Rear Wheel Bearings I I I I I I I I I I I I I
21 Rear Tire Tread Depth - I I I I I I I I I I I I
Tire Pressure I I I I I I I I I I I I I
22 Rear Suspension I I I I I I I I I I I I I
23 Motor - I I I I I I I I I I I I
24 Motor Seal (*) I I I I I I R I I I I I R
25 Battery Tray Felt Liner I I I I I I I I I I I I I
Notes: I = Inspect, L = Lubricate (with grease), R = Replace
(*) Replacing the motor seal at the specified maintenance interval helps maintain motor sealing integrity and prevent potential damage or failures.
STT Nội dung bảo dưỡng Quãng đường xe chạy hoặc thời gian sử dụng tùy điều kiện nào đến trước
x 100 km 1 5 10 15 20 25 30 35 40 45 50
Tháng thứ 1 3 5 7 9 11 13 15 17 19 21
1 Tay phanh trước/Sau KT KT KT KT KT KT KT KT KT KT KT
2 Dầu phanh (kiểm tra bằng mắt) - - - - - KT - - - - KT
3 Má phanh trước/Sau KT KT KT KT KT KT KT KT KT KT KT
4 Ống dầu phanh trước/Sau KT KT KT KT KT KT KT KT KT KT KT
5 Đèn/màn hình HMI/chuông KT KT KT KT KT KT KT KT KT KT KT
6 Tay ga/công tắc đèn KT KT KT KT KT KT KT KT KT KT KT
7 Chân chống cạnh KT KT KT KT KT KT KT KT KT KT KT
8 Pin Lithion-ion Cổng kết nối sạc KT KT KT KT KT KT KT KT KT KT KT
Chân kết nối KT KT KT KT KT KT KT KT KT KT KT
Ổ khóa KT KT KT KT KT KT KT KT KT KT KT
Hình dáng bên ngoài - KT KT KT KT KT KT KT KT KT KT
9 Vành xe trước Độ đảo KT KT KT KT KT KT KT KT KT KT KT
Chân nan hoa KT KT KT KT KT KT KT KT KT KT KT
Bulong trục trước KT KT KT KT KT KT KT KT KT KT KT
Bi trục trước KT KT KT KT KT KT KT KT KT KT KT
10 Lốp xe trước Độ sâu hoa lốp - KT KT KT KT KT KT KT KT KT KT
Áp suất hơi KT KT KT KT KT KT KT KT KT KT KT
11 Cổ phốt KT KT KT KT KT KT KT KT KT KT KT
- - - - BT - - - BT - -
12 Giảm xóc trước KT KT KT KT KT KT KT KT KT KT KT
13 Vành xe sau Độ đảo KT KT KT KT KT KT KT KT KT KT KT
Chân nan hoa KT KT KT KT KT KT KT KT KT KT KT
Bulong trục bánh sau KT KT KT KT KT KT KT KT KT KT KT
Bi trục sau KT KT KT KT KT KT KT KT KT KT KT
14 Lốp xe sau Độ sâu hoa lốp - KT KT KT KT KT KT KT KT KT KT
Áp suất hơi KT KT KT KT KT KT KT KT KT KT KT
15 Xích BT BT BT BT BT BT BT BT BT BT BT
16 Đĩa xích (Nhông) KT KT KT KT KT KT KT KT KT KT KT
17 Líp KT KT KT KT KT KT KT KT KT KT KT
18 Cần tăng xích KT KT KT KT KT KT KT KT KT KT KT
19 Bàn Đạp KT KT KT KT KT KT KT KT KT KT KT
20 Động cơ - KT KT KT KT KT KT KT KT KT KT
Ghi Chú: KT = Kiểm tra, BT = Bôi trơn
No. Maintenance Item Vehicle Mileage or Service Period (Whichever Comes First)
X 1000 km 1 5 10 15 20 25 30 35 40 45 50 55 60
Month 1 6 12 18 24 30 36 42 48 54 60 66 72
1 Brake Levers I I I I I I I I I I I I I
- L L L L L L L L L L L L
2 Lights / Horn / HMI Display I I I I I I I I I I I I I
3 Throttle Grip and Cover I I I I I I I I I I I I I
4 Side Stand / Center Stand I I I I I I I I I I I I I
- L L L L L L L L L L L L
5 Seat Lock Mechanism Inspection - L L L L L L L L L L L L
6 Lithium-ion Battery Connector Ports I I I I I I I I I I I I I
External Appearance - I I I I I I I I I I I I
7 Charging Port I I I I I I I I I I I I I
8 Battery Connector I I I I I I I I I I I I I
9 Front Brake I I I I I I I I I I I I I
10 Front Brake Cable I I I I I I I I I I I I I
11 Front Wheel Rim External Appearance I I I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I I I
Front Wheel Bearings I I I I I I I I I I I I I
Front Wheel Seal I L L L L L L L L L L L L
12 Front Tire Tread Depth - I I I I I I I I I I I I
Tire Pressure I I I I I I I I I I I I I
13 Steering Head Bearings I I I I I I I I I I I I I
- - - - L - - - L - - - L
14 Front Suspension I I I I I I I I I I I I I
15 Rear Brake I I I I I I I I I I I I I
16 Rear Brake Cable I I I I I I I I I I I I I
17 Rear Brake Assembly Mounting Bolt I I I I I I I I I I I I I
18 Rear Wheel Rim External Appearance I I I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I I I
Rear Wheel Bearings I I I I I I I I I I I I I
19 Rear Tire Tread Depth - I I I I I I I I I I I I
Tire Pressure I I I I I I I I I I I I I
20 Rear Suspension I I I I I I I I I I I I I
21 Chain L L L L L L L L L L L L L
22 Front Sprocket I I I I I I I I I I I I I
23 Rear Sprocket I I I I I I I I I I I I I
24 Pedal I I I I I I I I I I I I I
25 Motor - I I I I I I I I I I I I
26 Motor Seal (*) I I I I I I R I I I I I R
Notes: I = Inspect, L = Lubricate (with grease), R = Replace
(*) Replacing the motor seal at the specified maintenance interval helps maintain motor sealing integrity and prevent potential damage or failures.
No. Maintenance Item Vehicle Mileage or Service Period (Whichever Comes First)
X 1000 km 1 5 10 15 20 25 30 35 40 45 50 55 60
Month 1 6 12 18 24 30 36 42 48 54 60 66 72
1 Brake Levers I I I I I I I I I I I I I
- L L L L L L L L L L L L
2 Lights / Horn / HMI Display I I I I I I I I I I I I I
3 Throttle Grip and Cover I I I I I I I I I I I I I
4 Side Stand / Center Stand I I I I I I I I I I I I I
- L L L L L L L L L L L L
5 Seat Lock Mechanism Inspection - L L L L L L L L L L L L
6 Lithium-ion Battery Connector Ports I I I I I I I I I I I I I
External Appearance - I I I I I I I I I I I I
7 Charging Port I I I I I I I I I I I I I
8 Battery Connector I I I I I I I I I I I I I
9 Front Brake I I I I I I I I I I I I I
10 Front Brake Cable I I I I I I I I I I I I I
11 Front Wheel Rim External Appearance I I I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I I I
Front Wheel Bearings I I I I I I I I I I I I I
Front Wheel Seal I L L L L L L L L L L L L
12 Front Tire Tread Depth - I I I I I I I I I I I I
Tire Pressure I I I I I I I I I I I I I
13 Steering Head Bearings I I I I I I I I I I I I I
- - - - L - - - L - - - L
14 Front Suspension I I I I I I I I I I I I I
15 Rear Brake I I I I I I I I I I I I I
16 Rear Brake Cable I I I I I I I I I I I I I
17 Rear Brake Assembly Mounting Bolt I I I I I I I I I I I I I
18 Rear Wheel Rim External Appearance I I I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I I I
Rear Wheel Bearings I I I I I I I I I I I I I
19 Rear Tire Tread Depth - I I I I I I I I I I I I
Tire Pressure I I I I I I I I I I I I I
20 Rear Suspension I I I I I I I I I I I I I
21 Chain L L L L L L L L L L L L L
22 Front Sprocket I I I I I I I I I I I I I
23 Rear Sprocket I I I I I I I I I I I I I
24 Pedal I I I I I I I I I I I I I
25 Motor - I I I I I I I I I I I I
26 Motor Seal (*) I I I I I I R I I I I I R
Notes: I = Inspect, L = Lubricate (with grease), R = Replace
(*) Replacing the motor seal at the specified maintenance interval helps maintain motor sealing integrity and prevent potential damage or failures.
No. Maintenance Item Vehicle Mileage or Service Period (Whichever Comes First)
X 1000 km 1 5 10 15 20 25 30 35 40 45 50 55 60
Month 1 6 12 18 24 30 36 42 48 54 60 66 72
1 Brake levers I I I I I I I I I I I I I
- L L L L L L L L L L L L
2 Lights / horn / HMI display I I I I I I I I I I I I I
3 Throttle grip and cover I I I I I I I I I I I I I
4 Side stand / center stand I I I I I I I I I I I I I
- L L L L L L L L L L L L
5 Seat lock mechanism - L L L L L L L L L L L L
6 Lithium‑ion battery Connection port I I I I I I I I I I I I I
External appearance - I I I I I I I I I I I I
7 Charging port I I I I I I I I I I I I I
8 USB charging port - - - - I - - - I - - - I
9 Battery connector I I I I I I I I I I I I I
10 Brake fluid I I I I R I I I R I I I R
11 Front brake I I I I I I I I I I I I I
12 Front brake hose I I I I I I I I I I I I I
13 Front wheel rim External appearance I I I I I I I I I I I I I
Mounting bolt I I I I I I I I I I I I I
Front wheel bearing I I I I I I I I I I I I I
Front wheel seal I L L L L L L L L L L L L
14 Front tire Tread depth - I I I I I I I I I I I I
Tire pressure I I I I I I I I I I I I I
15 Steering head I I I I I I I I I I I I I
- - - - L - - - L - - - L
16 Front suspension I I I I I I I I I I I I I
17 Rear brake I I I I I I I I I I I I I
18 Rear brake cable I I I I I I I I I I I I I
19 Rear brake assembly mounting bolt I I I I I I I I I I I I I
20 Rear wheel rim External appearance I I I I I I I I I I I I I
Mounting bolt I I I I I I I I I I I I I
Rear wheel bearing I I I I I I I I I I I I I
21 Rear tire Tread depth - I I I I I I I I I I I I
Tire pressure I I I I I I I I I I I I I
22 Rear suspension I I I I I I I I I I I I I
23 Motor - I I I I I I I I I I I I
24 Motor seal (*) I I I I I I R I I I I I R
Notes: I = Inspect, L = Lubricate (with grease), R = Replace
(*) Replacing the motor seal at the specified maintenance interval helps maintain motor sealing integrity and prevent potential damage or failures.
No. Maintenance Item Vehicle Mileage or Service Period (Whichever Comes First)
X 1000 km 1 5 10 15 20 25 30 35 40 45 50 55 60
Month 1 6 12 18 24 30 36 42 48 54 60 66 72
1 Brake levers I I I I I I I I I I I I I
- L L L L L L L L L L L L
2 Lights / horn / HMI display I I I I I I I I I I I I I
3 Throttle grip and cover I I I I I I I I I I I I I
4 Side stand / center stand I I I I I I I I I I I I I
- L L L L L L L L L L L L
5 Seat lock mechanism - L L L L L L L L L L L L
6 Lithium‑ion battery Connection port I I I I I I I I I I I I I
External appearance - I I I I I I I I I I I I
7 Charging port I I I I I I I I I I I I I
8 USB charging port - - - - I - - - I - - - I
9 Battery connector I I I I I I I I I I I I I
10 Brake fluid I I I I R I I I R I I I R
11 Front brake I I I I I I I I I I I I I
12 Front brake hose I I I I I I I I I I I I I
13 Front wheel rim External appearance I I I I I I I I I I I I I
Mounting bolt I I I I I I I I I I I I I
Front wheel bearing I I I I I I I I I I I I I
Front wheel seal I L L L L L L L L L L L L
14 Front tire Tread depth - I I I I I I I I I I I I
Tire pressure I I I I I I I I I I I I I
15 Steering head I I I I I I I I I I I I I
- - - - L - - - L - - - L
16 Front suspension I I I I I I I I I I I I I
17 Rear brake I I I I I I I I I I I I I
18 Rear brake cable I I I I I I I I I I I I I
19 Rear brake assembly mounting bolt I I I I I I I I I I I I I
20 Rear wheel rim External appearance I I I I I I I I I I I I I
Mounting bolt I I I I I I I I I I I I I
Rear wheel bearing I I I I I I I I I I I I I
21 Rear tire Tread depth - I I I I I I I I I I I I
Tire pressure I I I I I I I I I I I I I
22 Rear suspension I I I I I I I I I I I I I
23 Motor - I I I I I I I I I I I I
24 Motor seal (*) I I I I I I R I I I I I R
Notes: I = Inspect, L = Lubricate (with grease), R = Replace
(*) Replacing the motor seal at the specified maintenance interval helps maintain motor sealing integrity and prevent potential damage or failures.
No. Maintenance Item Vehicle Mileage or Service Period (Whichever Comes First)
X 1000 km 1 5 10 15 20 25 30 35 40 45 50 55 60
Month 1 6 12 18 24 30 36 42 48 54 60 66 72
1 Brake Levers I I I I I I I I I I I I I
- L L L L L L L L L L L L
2 Lights / Horn / HMI Display I I I I I I I I I I I I I
3 Throttle Grip and Cover I I I I I I I I I I I I I
4 Side Stand / Center Stand I I I I I I I I I I I I I
- L L L L L L L L L L L L
5 Seat Lock Mechanism Inspection - L L L L L L L L L L L L
6 Lithium-ion Battery Connector Ports I I I I I I I I I I I I I
External Appearance - I I I I I I I I I I I I
7 Charging Port I I I I I I I I I I I I I
8 Battery Connection Port I I I I I I I I I I I I I
9 Front Brake I I I I I I I I I I I I I
10 Front Brake Cable I I I I I I I I I I I I I
11 Front Wheel Rim External Appearance I I I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I I I
Front Wheel Bearings I I I I I I I I I I I I I
Front Wheel Seal I L L L L L L L L L L L L
12 Front Tire Tread Depth - I I I I I I I I I I I I
Tire Pressure I I I I I I I I I I I I I
13 Steering Head Bearings I I I I I I I I I I I I I
- - - - L - - - L - - - L
14 Front Suspension I I I I I I I I I I I I I
15 Rear Brake I I I I I I I I I I I I I
16 Rear Brake Cable I I I I I I I I I I I I I
17 Rear Wheel Rim External Appearance I I I I I I I I I I I I I
Mounting Bolts I I I I I I I I I I I I I
Rear Wheel Bearings I I I I I I I I I I I I I
18 Rear Tire Tread Depth - I I I I I I I I I I I I
Tire Pressure I I I I I I I I I I I I I
19 Rear Suspension I I I I I I I I I I I I I
20 Motor - I I I I I I I I I I I I
21 Motor Seal (*) I I I I I I R I I I I I R
22 Battery Tray Felt Liner I I I I I I I I I I I I I
Notes: I = Inspect, L = Lubricate (with grease), R = Replace
(*) Replacing the motor seal at the specified maintenance interval helps maintain motor sealing integrity and prevent potential damage or failures.
No. Maintenance Item Vehicle Mileage or Service Period (Whichever Comes First)
X 1000 km 1 5 10 15 20 25 30 35 40 45 50 55 60
Month 1 6 12 18 24 30 36 42 48 54 60 66 72
1 Brake levers I I I I I I I I I I I I I
- L L L L L L L L L L L L
2 Lights / horn / HMI display I I I I I I I I I I I I I
3 Throttle grip and cover I I I I I I I I I I I I I
4 Side stand / center stand I I I I I I I I I I I I I
- L L L L L L L L L L L L
5 Seat lock mechanism - L L L L L L L L L L L L
6 Lithium‑ion battery Connection port I I I I I I I I I I I I I
External appearance - I I I I I I I I I I I I
7 Charging port I I I I I I I I I I I I I
8 Battery connector I I I I I I I I I I I I I
9 Brake fluid I I I I R I I I R I I I R
10 Front brake I I I I I I I I I I I I I
11 Front brake hose I I I I I I I I I I I I I
12 Front wheel rim External appearance I I I I I I I I I I I I I
Mounting bolt I I I I I I I I I I I I I
Front wheel bearing I I I I I I I I I I I I I
Front wheel seal I L L L L L L L L L L L L
13 Front tire Tread depth - I I I I I I I I I I I I
Tire pressure I I I I I I I I I I I I I
14 Steering head I I I I I I I I I I I I I
- - - - L - - - L - - - L
15 Front suspension I I I I I I I I I I I I I
16 Rear brake I I I I I I I I I I I I I
17 Rear brake cable I I I I I I I I I I I I I
18 Rear brake assembly mounting bolt I I I I I I I I I I I I I
19 Rear wheel rim External appearance I I I I I I I I I I I I I
Mounting bolt I I I I I I I I I I I I I
Rear wheel bearing I I I I I I I I I I I I I
20 Rear tire Tread depth - I I I I I I I I I I I I
Tire pressure I I I I I I I I I I I I I
21 Rear suspension I I I I I I I I I I I I I
22 Motor - I I I I I I I I I I I I
23 Motor seal (*) I I I I I I R I I I I I R
Notes: I = Inspect, L = Lubricate (with grease), R = Replace
(*) Replacing the motor seal at the specified maintenance interval helps maintain motor sealing integrity and prevent potential damage or failures.
No. Maintenance Item Vehicle Mileage or Service Period (Whichever Comes First)
X 1000 km 1 5 10 15 20 25 30 35 40 45 50 55 60
Month 1 6 12 18 24 30 36 42 48 54 60 66 72
1 Brake levers I I I I I I I I I I I I I
- L L L L L L L L L L L L
2 Lights / horn / HMI display I I I I I I I I I I I I I
3 Throttle grip and cover I I I I I I I I I I I I I
4 Side stand / center stand I I I I I I I I I I I I I
- L L L L L L L L L L L L
5 Seat lock mechanism - L L L L L L L L L L L L
6 Lithium‑ion battery Connection port I I I I I I I I I I I I I
External appearance - I I I I I I I I I I I I
7 Charging port I I I I I I I I I I I I I
8 Battery connector I I I I I I I I I I I I I
9 Brake fluid I I I I R I I I R I I I R
10 Front brake I I I I I I I I I I I I I
11 Front brake hose I I I I I I I I I I I I I
12 Front wheel rim External appearance I I I I I I I I I I I I I
Mounting bolt I I I I I I I I I I I I I
Front wheel bearing I I I I I I I I I I I I I
Front wheel seal I L L L L L L L L L L L L
13 Front tire Tread depth - I I I I I I I I I I I I
Tire pressure I I I I I I I I I I I I I
14 Steering head I I I I I I I I I I I I I
- - - - L - - - L - - - L
15 Front suspension I I I I I I I I I I I I I
16 Rear brake I I I I I I I I I I I I I
17 Rear brake cable I I I I I I I I I I I I I
18 Rear brake assembly mounting bolt I I I I I I I I I I I I I
19 Rear wheel rim External appearance I I I I I I I I I I I I I
Mounting bolt I I I I I I I I I I I I I
Rear wheel bearing I I I I I I I I I I I I I
20 Rear tire Tread depth - I I I I I I I I I I I I
Tire pressure I I I I I I I I I I I I I
21 Rear suspension I I I I I I I I I I I I I
22 Motor - I I I I I I I I I I I I
23 Motor seal (*) I I I I I I R I I I I I R
Notes: I = Inspect, L = Lubricate (with grease), R = Replace
(*) Replacing the motor seal at the specified maintenance interval helps maintain motor sealing integrity and prevent potential damage or failures.

Benefits of VinFast Authorized Maintenance

Having your e-scooter serviced within the VinFast Authorized Service Center network helps support safe, reliable operation and preserve long-term e-scooter value. Services are performed using VinFast standard service procedures by trained technicians across a nationwide service network.

Dịch vụ bảo dưỡng VinFast
Dịch vụ bảo dưỡng VinFast

Customers benefit from consistent service quality, transparent pricing, continued warranty eligibility, and 100% genuine VinFast parts for optimal compatibility and safety.

Support Resources
